HC-801A 20MP HD 1080P Trail Hunting Camera

- 120 degree 1080P HD PIR sensor camera, support 16MP/12MP/8MP / 5MP / 3MP selectable image resolution, 1080P 30fps video. Infrared camera survey for wild animals.

- 1 / 5 / 10 / 30 seconds / minutes interval between motions optional. Camera can be programmed to operate either in PIR mode or time lapse mode.

- IR flash for color photo / video day or black and white photo / video at night. HD video (1080P) with sound.

- Real temperature, time and date to be stamped in the picture, so you know when the picture or video was taken.

- 36pcs IR LEDs, super long detection range up to 20m / 66 feet. Trigger time is 0.3s, fast fire continuous shooting, never miss any important picture.

- IPX65 sealed waterproof appearance, effectively prevent rainwater dust and insects from entering.

- Support Micro SD card / USB / AV output(SD card is not included).

- Great tool for hunting, traveling, camping, tracking domestic / wild animals. Easy to use and mount.

- It can be triggered by any movement of human (or animals) in a certain region monitored by motion sensor.

- The infrared remoter is an input device of the camera and primarily used for customer settings. Its maximum remote distance is 20 meters.

- With the fixed rope with buckle, easy to fix to tree rods and tree branches.

Parameter:

Video resolution: 1280x720/30fps 720x480/30fps; 640x480/30fps;320x240/30fps

File format: JPG/.AVI

Lens: f=3.09; F/NO=2.0; FOV=108; Auto IR filter

Display: 2.0" TFTLCD

External memory : TF card up to 32GB

Internal memory : 8Mx16 SDRAM

Range of IR flash: 20m

The number of IR lamp :36pcs

Triggering distance : 25m( Below 77°F/25°C at the Normal Level)

Lens angle : 108°

Detection angle of sensors :60°

PIR Sensitivity: High/Normal/Low

Temperature compensation: Yes

Prep PIR Sensing Angle: On/Off;120°

Triggering time : 0.6 Second(When using the 4G SD card);Pre boot 0.2 Sesond

Trigger Interval : 0sec. - 60min;Programmable

Shooting Numbers: 1--3

Effectiveness: Daytine:1m-infinitive; Night time:3m-25m

Video Length: 1-60sec.;Programmable

Camera+Video : First take Picture then Video

Time Stamp: On/Off;Include serial No.,temperature and moon phase

Time Lapse : On/Off; Time Lapse Programmable

Periodic Shot: Time Laps 5 Second ~ 24Hours

Password: 4-Digit Numbers

Build-in Microphone: Yes

Build in Speaker :Yes

Auto-distinguish images :Color images in daytime/black & white night images

Auto Power Off : Auto power off in 2 minutes while no keypad controlling

TV-out: Yes

PC Interface:Mini USB2.0

Power supply:4xAA;Expandable to 8xAA(Not included)

external 6V power supply,at least 2A

Battery life:More than 30K photos in daytime,and more than 12K photos in night

Standby time: approx.8 months

Spray-water protected:Yes (IP protection class65)

Operating Temperature : -20 to +60 degree

Dimensions :approx.135*90*76mm

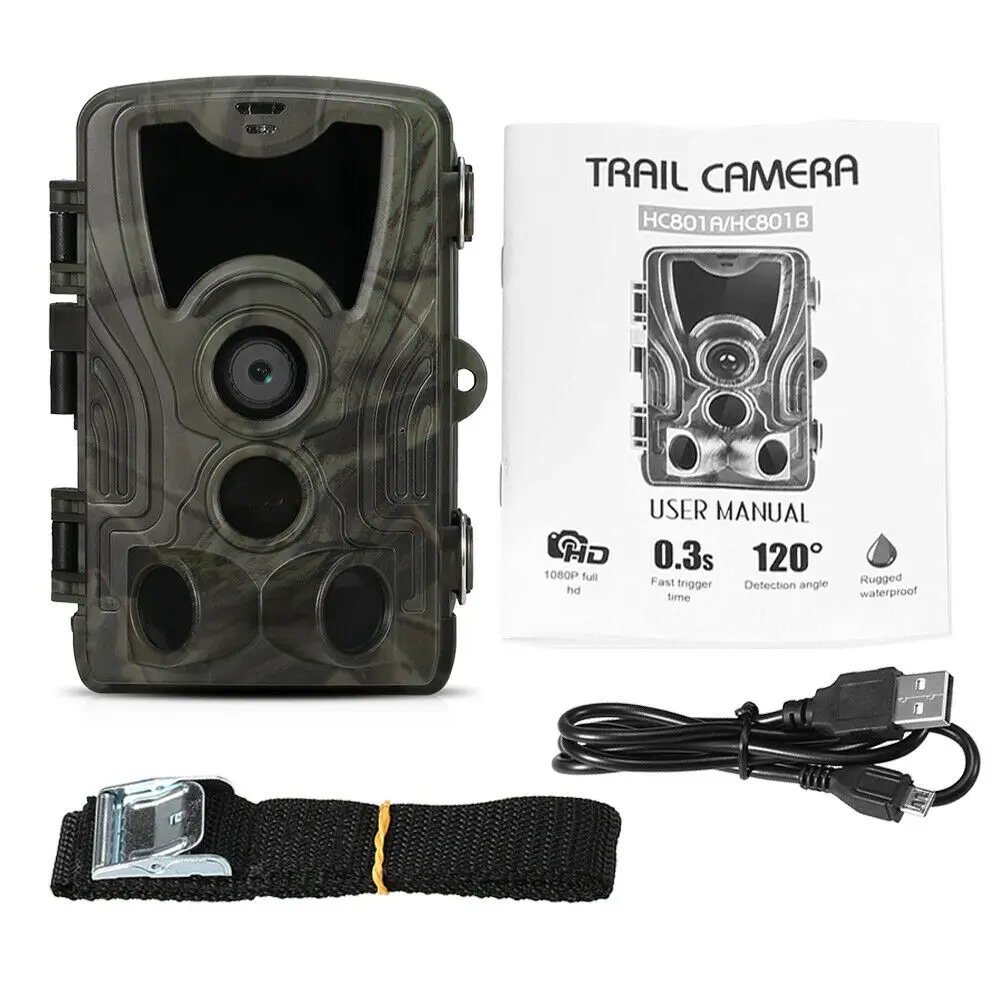

Package details:

1 X HC-801 Camera

1 X USB Cable

1 X Strap

1 X Manual
